Generate the Dataset

In the previous part of this tutorial we set up a templating system that allows us to programmatically modify the wind_speed parameter in the OpenFOAM input file. This allows us to easily generate multiple simulation configurations.

We will now take the next step and use a for loop to automate the process and generate a dataset in parallel. This approach demonstrates the true power of Inductiva: efficiently scaling simulations to save computation time.

Writing a “for loop” and adding more machines

We will first show you all the necessary code and then analyze it step by step. Each section of code is easy to understand and builds on the examples shown in the previous parts of this tutorial.

import random

import inductiva

project = inductiva.projects.Project("openfoam_dataset")

# Allocate cloud machine
cloud_machine = inductiva.resources.ElasticMachineGroup(
   provider="GCP",
   machine_type="c2d-highcpu-4",
   spot=True,
   # 1 thread per physical core
   threads_per_core=1,
   min_machines=1,
   max_machines=5)

MIN_WINDSPEED = 5
MAX_WINDSPEED = 50
DATASET_SIZE = 25

for i in range(DATASET_SIZE):
    # Sample the wind_speed
    wind_speed = random.randint(MIN_WINDSPEED, MAX_WINDSPEED)

    print(f"Preparing files for OpenFOAM with "\
          f"wind_speed = {wind_speed}")
    target_dir = f"variations/wind_speed_{wind_speed}"
    inductiva.TemplateManager.render_dir(
        source_dir="openfoam-input-example/",
        target_dir=target_dir,
        overwrite=True,
        wind_speed=wind_speed)

    # Initialize the Simulator
    openfoam = inductiva.simulators.OpenFOAM()

    # Run simulation
    task = openfoam.run(
        input_dir=target_dir,
        shell_script="./Allrun",
        on=cloud_machine,
        resubmit_on_preemption=True,
    )

    project.add_task(task)

    # Save the parameters in task metadata for later
    task.set_metadata({
        "wind_speed": str(wind_speed),
        "local_template_dir": target_dir
    })

project.wait()
cloud_machine.terminate()

Let's break this script into parts.

Code section 1: Creating the Project

We will use a project to group all the tasks. This allows us to wait for all tasks to complete and provides additional information, such as the project’s total cost.

project = inductiva.projects.Project("openfoam_dataset")

Code Section 2: Allocating the Cloud Machine Group

We will allocate an elastic machine group to run our simulations. This group has a minimum number of active machines and a maximum capacity. Machines are dynamically turned on or off as demanded, ensuring efficient resource utilization.

As some simulations may take longer than others, this elastic setup prevents idle waiting. When a machine completes its task and has no more simulations to run, it does not have to wait for all the other machines to finish. Instead, the elastic group of machines automatically scales down, optimizing cloud usage and reducing costs.

# Allocate cloud machine
cloud_machine = inductiva.resources.ElasticMachineGroup(
   provider="GCP",
   machine_type="c2d-highcpu-32",
   spot=True,
   min_machines=1,
   max_machines=5)

Code Section 3: Use Inductiva Templating to Generate Input Variations

We now enter a loop that is responsible for generating new input files and running each simulation.

First, we sample the values for wind_speed. For each value, we generate input files using the render_dir method as we saw in the previous section:

for i in range(DATASET_SIZE):
    # Sample the wind_speed
    wind_speed = random.randint(MIN_WINDSPEED, MAX_WINDSPEED)

    print(f"Preparing files for OpenFOAM with "\
          f"wind_speed = {wind_speed}")
    target_dir = f"variations/wind_speed_{wind_speed}"
    inductiva.TemplateManager.render_dir(
        source_dir="openfoam-input-example/",
        target_dir=target_dir,
        overwrite=True,
        rotation=rotation,
        wind_speed=wind_speed)
    ...

Code Section 4: Starting Simulation

Next, we initialize the OpenFOAM simulator and run the simulation using the newly created input directory. Each simulation task is added to the project, allowing us to track and wait for all tasks to be completed. We also save some task metadata to keep track of the input parameters.

Note: We use resubmit_on_preemption=True when submitting a task to ensure that if a machine is preempted, the task is automatically resubmitted on another machine. Preemptions can occur when using spot machines, which are significantly cheaper (up to 5× less expensive than regular instances) but carry the risk of being interrupted at any time.

    ...
    # Initialize the Simulator
    openfoam = inductiva.simulators.OpenFOAM()

    # Run simulation
    task = openfoam.run(
        input_dir=target_dir,
        shell_script="./Allrun",
        on=cloud_machine,
        resubmit_on_preemption=True,
    )

    project.add_task(task)

    # Save the parameters in task metadata for later
    task.set_metadata({
        "wind_speed": str(wind_speed),
        "local_template_dir": target_dir
    })

Code Section 5: Waiting for the Simulations to finish

In this last part of the code we just wait for all the tasks to finish.

Once all the tasks are done, we turn off our cloud machines.

project.wait()
cloud_machine.terminate()

You can list the tasks from this project by running this command on your command line interface inductiva tasks list -p openfoam_dataset

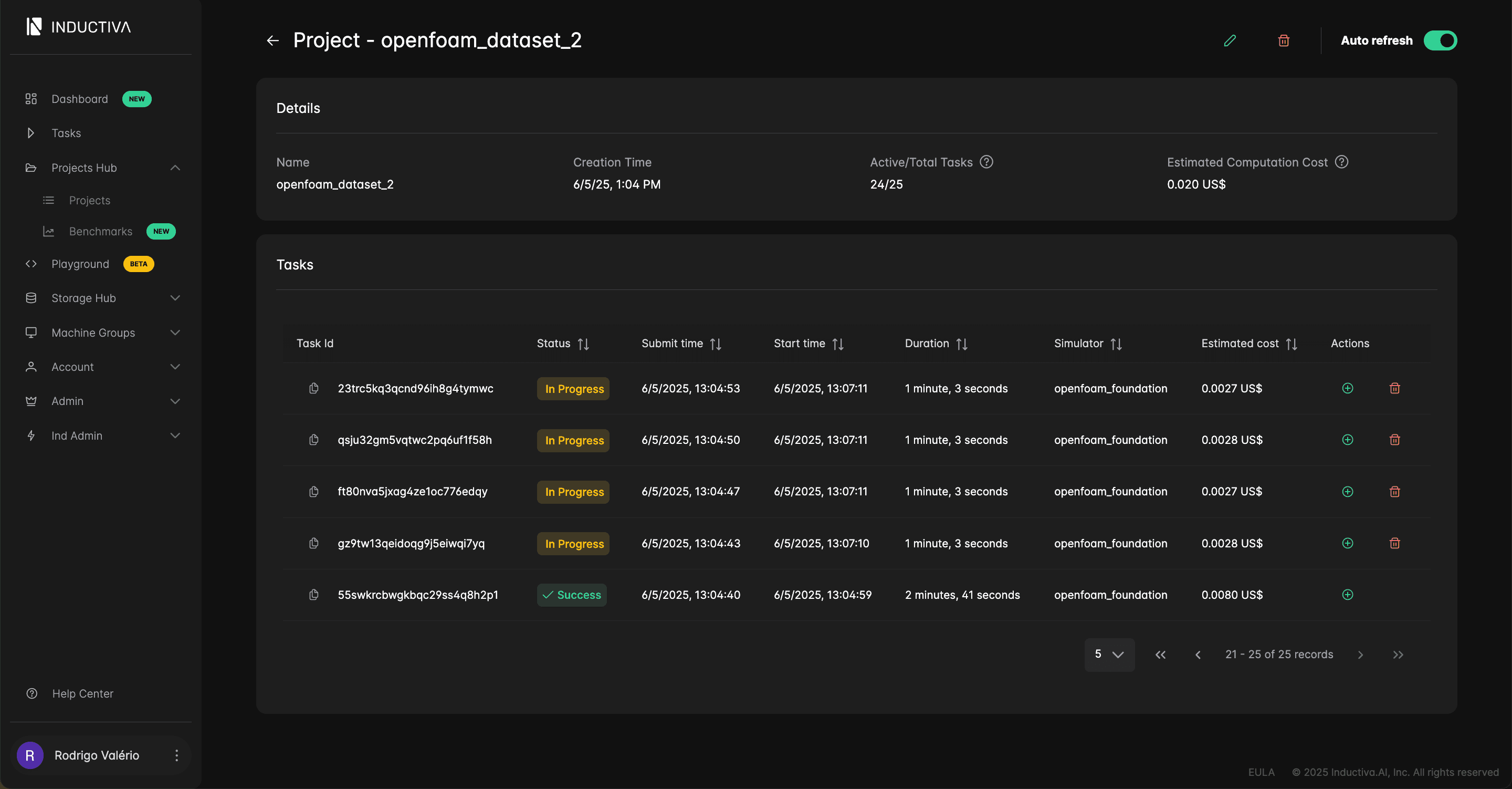

Alternatively, you can also check the tasks projects in the Inductiva Web Console on the Projects tab:

Summary

We demonstrated how Inductiva can be used to efficiently run multiple OpenFOAM simulations in parallel and generate a dataset.

While a single OpenFOAM simulation may run faster on a local machine with high processing power, scaling up to dozens or hundreds of simulations is where Inductiva excels. By automating input file modifications and distributing simulations across inexpensive cloud machines, you can drastically reduce overall computation time and streamline large-scale studies.

With just a few lines of Python, you can effortlessly scale your OpenFOAM projects - saving time, optimising resources and accelerating your research. 🚀
